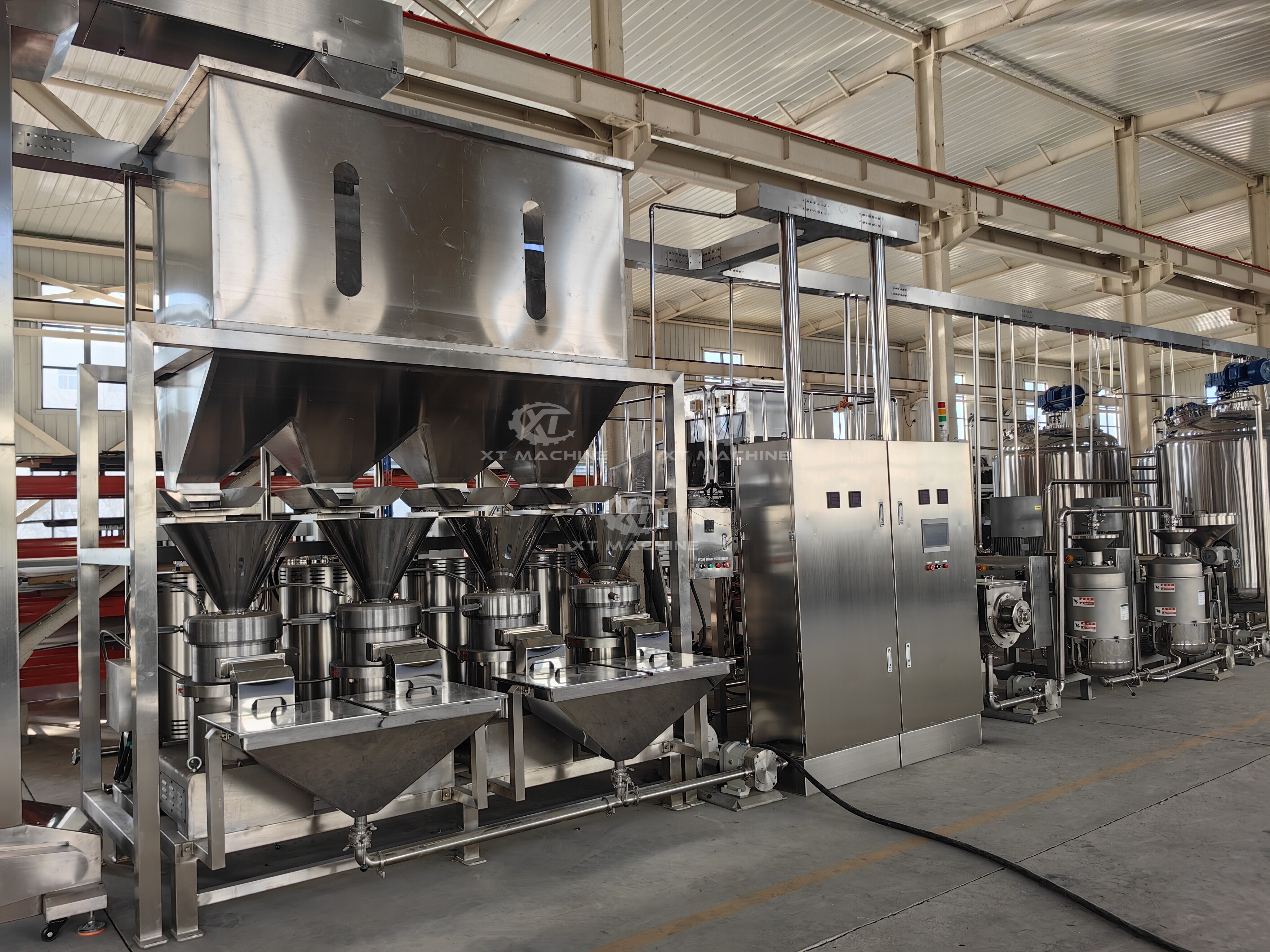

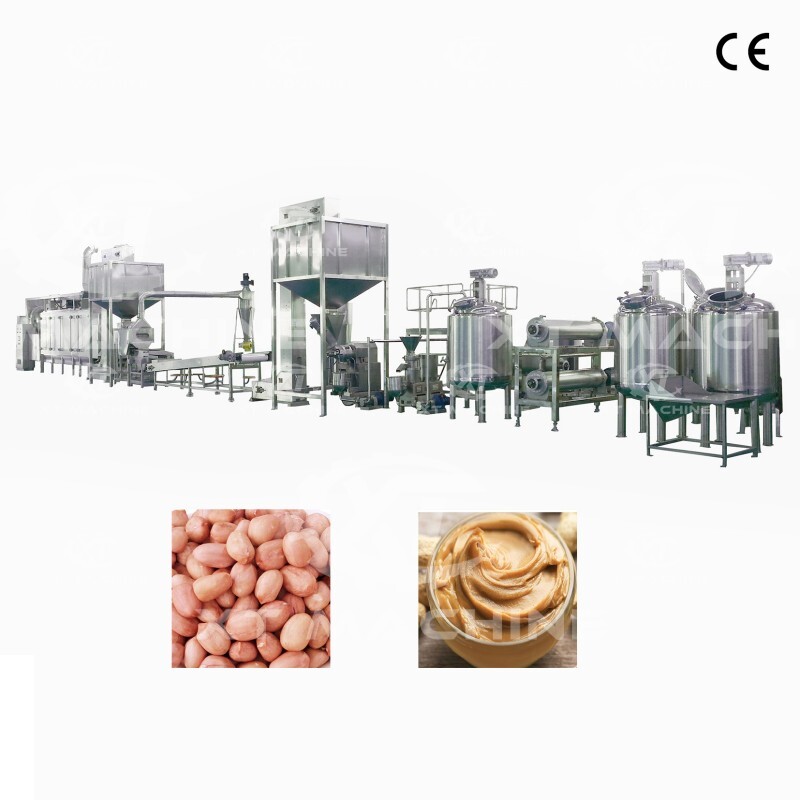

Peanut Butter Production Line

Full automatic peanut butter production line

The system mainly consists of elevator, roaster, blancher, Color sorter, hopper, elevator, vibrator, colloid mill, high speed cutting mill, mixing tank, degassing tank, cooling machine, filling machine, capping machine, labeling machine with capacity 500-2000kg/h, its equipped with dual-stage grinding capabilities, formula addition, and peanut butter cooling functions, making it ideal for producing peanut butter with a varied textures and flavors.

Continuous Belt Type Oven Roast Peanut at 150-160 degrees, Split peanut blanching machine removes red coat, and all the peanuts are divided into two halves and then separates the detached germ . This step will reduce the antitoxin content of the peanut butter. The unpeeled peanuts are separated by the sorter to ensure the color and quality of the peanut butter. Elevator efficiently transports blanched peanut, while the ultra-fine colloid mill and high speed cutting mill work together to achieve a smooth, fine texture through dual-stage grinding. Finished peanut butter fineness 200 mesh, The feeding platform is designed for seamless formula addition, avoiding any inconsistencies during the mixing process. At the final stage, the cooling mixing tank rapidly cools the peanut butter while continuously stirring preserving its idea texture and stability

The whole system is controlled by a PLC program, offering high automation and ease of operation.

Continuous Nut/Peanut Roaster

The Continuous nut roaster has been designed in order to meet all the remarkable requirements existing in the dry fruit/nut roasting. In fact the roaster is particular suitable for a wide range of products such as peanuts, hazelnuts, almonds, pistachios, cashews, sunflower seeds, sweet potato and so on. The stainless steel construction allows also the processing of wet and salted products. The roasting is carried out by forced air process and this permits to obtain a plain and homogeneous product. The roaster is divided in three different sections, including feeding section, roasting section and cooling section. The product passes though all the sections transported by a conveyor belt. The heating plant operated with gaseous fuels; natural gas LPG and others; it provide with safety systems so to make the roaster working absolutely safe.

The roaster provides equal heating and even forced hot air distribution; adopt alternate heating both from bottom and top. This design can guarantee the premium roasting quality, correct color and proper moisture contains products.

capacity:300kg/h 500kg/h 1000kg/h 2000kg/h 3000kg/h etc.

Split Peanut Peeling Machine

Split Peanut Blancher is designed to split roasted peanut into half or less half piece, under this split blanching, the red skin is taken off and collected by air cyclone. This kind of split blancher can make breakage peanut kernels

Split peanut blanching applies to peanut blanching line, peanut chopping line, peanut butter line and peanut slice line. This kind of nut blancher can adjust the gap of rubber belts, in order to satisfy different processing purpose, bitter germs will be removed by vibrating sifter after the blanching chamber.
Split peanut blancher contains bucket elevator, blanching machine and air cyclone, it is an entire complete system to finish the blanching . It can be designed to two type, a. full stainless steel, b. contacting parts stainless steel and painting carbon frame

capacity:800-1000kg/h

First Peanut grinding Machine

By the relative movement of the different geometric shaped stator and rotor under high-speed rotation, the material to be processed enters into the mill under the action of the Dead weight and air pressure force and centrifugal force and of the composite force, such as the strong shearing, rubbing, impact, high-frequency vibration when the material is through the annular variable gap, and then the material will be effectively dispersed, pulverized, emulsified, admixture, thereby the product with the satisfactory size and the quality will be fulfilled. The fineness grinding is reach to 40-80 meshes.

Seasoning

In this area, all flavors, such as sugar, salt, oil, stabilizer, etc. will add from the platform seasoning machine. All flavors and peanut butter will be mixed in the screw mixer and then pumping in to the second grinder.

Second Peanut grinding Machine

This peanut milling machine is suitable for processing peanut butter, chili sauce and various fruit and vegetable sauces. This precision cutting principle is a breakthrough processing method with multi-function, which can meet your needs for accurate and controlled crushing.

This peanut milling machine is designed with a reasonable sealed shell, which can effectively avoid the overflow of materials, steam and liquid. At the same time, it is made of food grade stainless steel to ensure the maximum durability and hygiene requirements

This peanut milling machine has large capacity, 24-hour operation, high sanitation, low maintenance, simple operation and easy cleaning

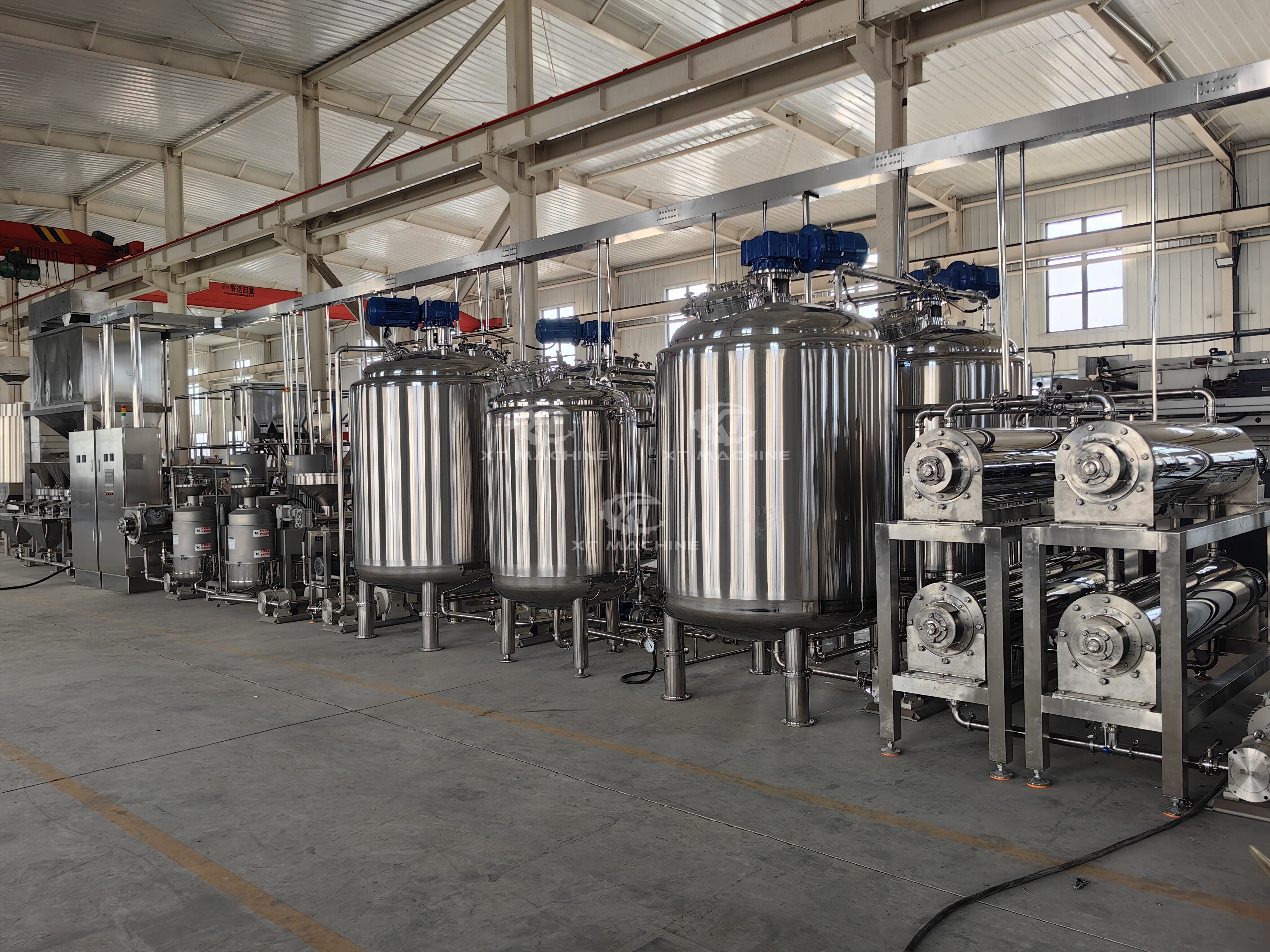

Blending

This tank has two layers, with three functions: mixing, cooling and temporary storage.

Peanut Butter Heat Exchanger

The butter will be pumped into cooling machine, through pipes twisted inside of cooler. It must have control temperature from cooling Temperature to 35-60C adjustable.

Degassing

Remove the air to make peanut butter more stable.
