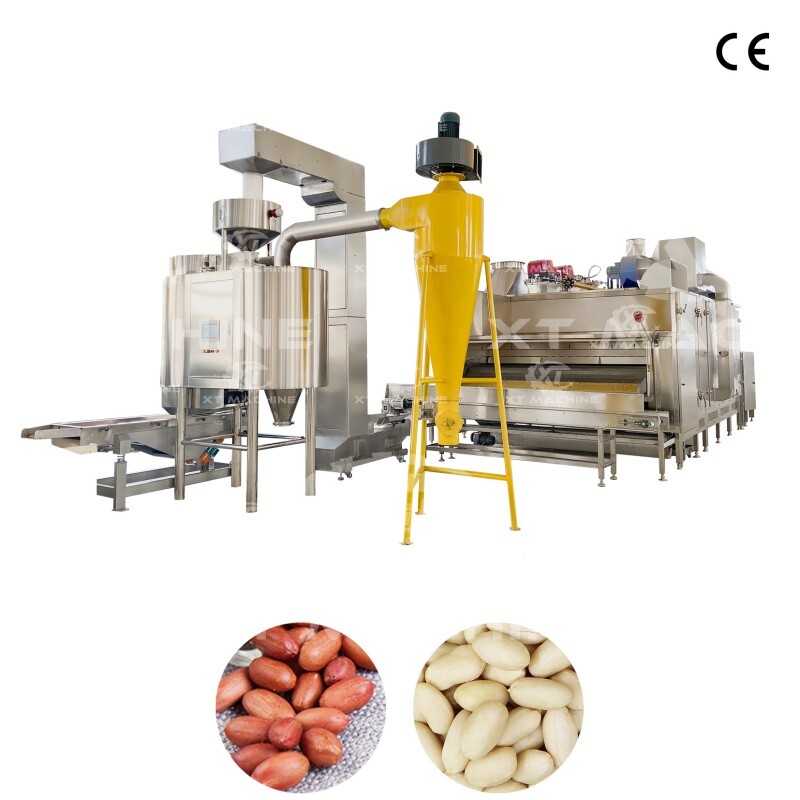

Peanut Air Blancher

Air Peanut Blanching Machine

The materials are weighed in the weighing hopper through the feeder, and then put into the peeling drum, which is equipped with spiral pieces. The compressed air blow into the peeling drum to makes the materials roll and rub in the spiral pieces to achieve the peeling result. The powder and red coat produced in the process of peeling under the action of compressed air will enter the primary dust collection room through the air flow, and the dust will be precipitated by the internal rotation of the wind, while the red coat will be collected by cycloneAfter the material is peeled, it will be discharged into the vibrating screen to remove impurities and get the well peeled peanut.

Machine components

Air Peanut Blancher Machine used compressed air as the peeling power, replaces the traditional sand roller peeling machine. The Air Peanut Blancher Machine includes hopper, elevator, receiving bin, automatic weighing device, peeling device, red skin suction device, and discharge vibration sifter, dust cyclone, and air compressor (can be prepared by yourself) The whole set of equipment is divided into 5 parts: feeding system, peeling system, red skin collection system, discharging system, and PLC control system.

The Peanut Blanching Room has a special structure chamber. The main blancher automatically completes the blanching process by blowing and releasing according to program instructions, The surface of the peeled peanut is not damaged, and the peeling rate is as high as 98%. The whole blanched peanut rate is also as high as 85% or more.

Application:

Peanut, Hazelnut
